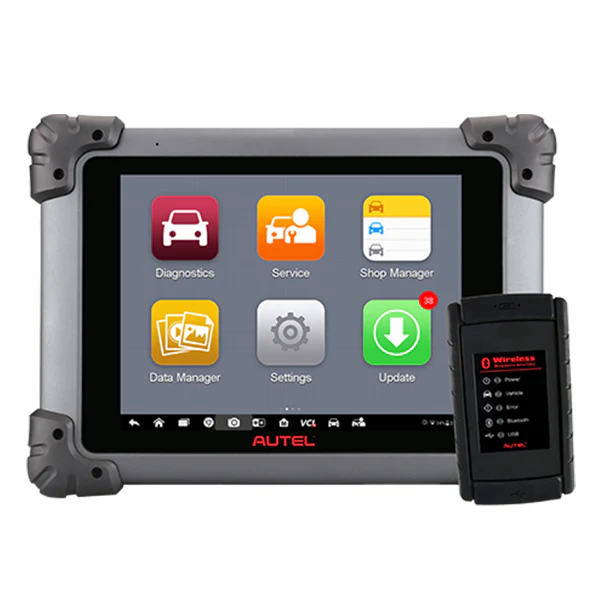

Autel - MaxiSYS MS908S - Advanced Smart Diagnostic Tool

AUTEL-MS908S

The MaxiSys MS908S Diagnostic Platform is an evolutionary smart solution for specialized automotive diagnosis. Utilizing the powerful Cortex A7+A15 six-core processor, and a 9.7 inch LED capacitive touch screen, combined with the best possible coverage of OE-level diagnostics, and based on the revolutionary multitask-capable Android Operating system, the MaxiSys organizes information with test instrumentation to help you diagnose symptoms, codes, and customer complaints easily, quickly and efficiently.

Specifications:

• Extraordinarily powerful Cortex A7+A15 six-core processor
• 9.7” 2048x1536 LED-backlit glossy Multi-Touch capacitive display with IPS technology
• Internal reliable 64GB On-board Memory for better performance
• Built-in 8-megapixel rear camera with autofocus and flashlight
• The VCI connects to the main unit wirelessly with up to 70 meters working range
• 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Open source Android Operating System for fast boot-up and multitasking
• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes


Technical Information:

Operating System	Android™ 4.4.2, KitKat
Processor	Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory	2 GB RAM & 32 GB ROM
Display	8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity	Wi-Fi (802.11 b/g/n) , USB: 2.0 , Mini USB 2.0 , Wireless BT V2.1+EDR Class1 , HDMI 1.4a , SD Card (support up to 32 GB)
Camera (rear)	Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	11,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage	12 V (9-35 V)
Power Consumption	5 W
Operating Temperature	-10 to 55°C (14 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Housing	Rubberized outer protection and rugged internal housing
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight	NW: 1.10 kg (2.42 lb.)

Packing List:

Downloads:

• Packing List
• Software Updates
• User Manual

How to Update VCI:

Comparison Chart

Models	MaxiSys Elite	MaxiSys CV	MaxiSys MS908S Pro	MaxiSys MS908S	MaxiSys MS906TS	MaxiSys MS906BT	MaxiSys MS906
All Systems DTC Scan	√	√	√	√	√	√	√
Service Function	√	√	√	√	√	√	√
Bi-Directional Control	√	√	√	√	√	√	√
Auto VIN Technology	√	√	√	√	√	√	√
ECU Coding	√	--	√	√	√	√	--
ECU Programming	√	--	√	--	--	--	--
MaxiFix Cloud-Based Info System	√	√	√	√	√	√	√
Data Manager	√	√	√	√	√	√	√
Shop Manager	√	√	√	√	√	√	√
Remote Support	√	√	√	√	√	√	√
Pre-scan Report & Post-scan Report	North America Only	--	North America Only	North America Only	√	North America Only	North America Only
Print Feature	√	√	√	√	√	√	√
Multi-language Support	√	√	√	√	√	√	√
Domestic/Asian/European Coverage(1996-Present)	√	√	√	√	√	√	√
Display Size	9.7"	9.7"	9.7"	9.7"	8"	8"	8"
Wireless VCI	MaxiFlash Elite	MaxiFlash Elite	MaxiFlash Elite	Wireless Diagnostic Interface	MaxiVCI V100	MaxiVCI V100	--
Battery Life	15400 mAh 3.7 V	11000 mAh 3.7 V	11000 mAh 3.7 V	11000 mAh 3.7 V	10000 mAh 3.7 V	10000 mAh 3.7 V	5000 mAh 3.7 V
Memory Storage	64GB	64GB	64GB	64GB	32GB	32GB	32GB
Connector Kit	√	√	√	√	√	√	√
TPMS	--	--	--	--	√	--	--
Oscilloscope	√	√	√	√	√	√	--
Inspection Camera	√	√	√	√	√	√	--
ADAS	√	--	√	√	--	√	√
