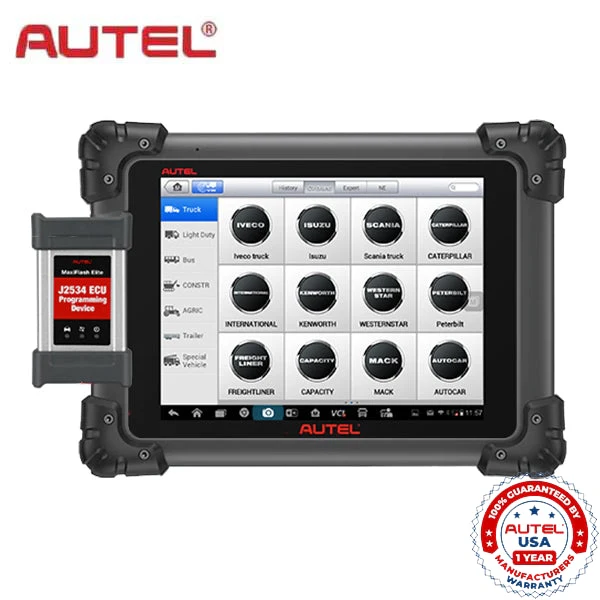

Autel - MaxiSys - MS908CV - OBD2 Heavy Duty Diagnostic Scanner - J2534 ECU Programming Device
The MaxiSys MS908CV is built on the powerful MaxiSys 908 platform and provides a comprehensive diagnostic solution for virtually all commercial vehicles as well as machines made in North America, Europe, and Asia. Offering advanced features and extreme ease of use, MaxiSys MS908CV is the ideal solution for independent repair shops, owner-operators, and various sized fleets seeking a single scan tool for all their professional heavy duty needs.
Features and benefits:
Hardware:
- Extraordinarily powerful Cortex-A9 quad-core processor
- 9.7” 1024x768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
- Internal reliable and fast 32GB Solid State Drive for better performance
- Built-in 5-megapixel rear camera with autofocus and flashlight
- Dual-band (2.4 GHz & 5.0 GHz) 802.11n Wi-Fi to access your favorite web resources
- Unique shop tough ergonomic design features strong rubber protection and housing
- Built-in rechargeable lithium-ion battery for up to 8 hours of continuous operation
- USB, audio and auxiliary ports make it easy to connect accessories
- The VCI connects to the main unit wirelessly with up to 230 meters working range
Software:
- Open source Android Operating System for fast boot-up and multitasking
- Easy and intuitive navigation makes finding what you need simple and fast
- Extensive vehicle coverage for more than 80 US, Asian and European commercial vehicle makes and machines
- Complete capabilities for codes, live data, actuation tests, adaptations
- Displays live data in text, graph, analog and digital gauge for easy data review and analysis
- Configures display options, sets triggers, records and playbacks results with one touch
- Records and playbacks live data to pinpoint troubles of sensors and components
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Remote technical support for convenient demonstration, training and increased customer satisfaction
- Prints out recorded data anytime and anywhere with Wi-Fi technology
- Automatic Wi-Fi updates available in new software releases
Specifications:
| Operating System | Android™ 4.0, Ice Cream Sandwich |
| Processor | Samsung Exynos Quad-Core Processor 1.4GHz |
| Memory | 2GB RAM & 32GB On-board Memory |
| Display | 9.7 inch LED capacitive touchscreen with 1024x768 resolution |
| Connectivity |
Ethernet: RJ45 Ethernet Connection Wi-Fi (802.11 a/b/g/n) USB: 2.0 BT v.2.1 + EDR SD Card (Support up to 32GB) HDMI |
| Camera (rear) | Rear-facing, 5.0 Megapixel, AF with Flashlight |
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
Microphone Dual Speakers 4-Band 3.5 mm stereo/standard headset jack |
| Power and Battery |
11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage |
12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp |
-10 to 55°C (14 to 131°F) |
| Storage Temp |
-20 to 70°C (-4 to 158°F) |
| Housing | Strong plastic housing with protective rubber boot |
| Dimensions | 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”) |
| Protocols | SAE J1939; SAE J1708; Manufacturer customized J1939; Manufacturer customized J1708; KWP; VPW; UDS-CAN; CDL |
