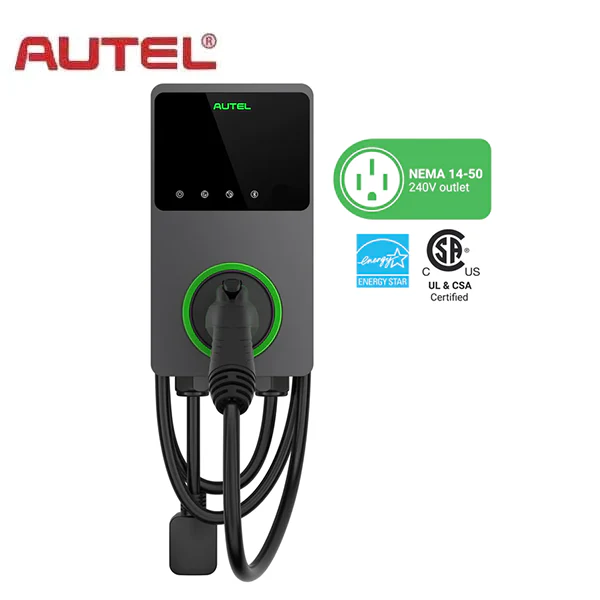

Autel - MaxiCharger AC Home 40A - NEMA 14-50 - EV Charger With In-Body Holster
AUTEL-MC40AP14S
The MaxiCharger Home 40A AC Plug-In EV Charger is a 240V-40 Amp Level 2 Smart Charger compatible with all EV and Hybrid Plug-in vehicles. It features a sleek contemporary design in dark gray and is installable indoors or outdoors.
The MaxiCharger Home 40A offers adjustable charging up to 40 Amps and features a 25ft long Universal (J1772) Charging Cable, NEMA 14-50 plug, and in-body holster.
Features
- Compatible with all EV and Plug-in Hybrid Vehicles
- Contemporary Design, Dark Gray
- In-body holster and cable management
- Autel Charge App enables remote start, stop, monitoring and scheduling
- Specially designed for Indoor or Outdoor use
- Wi-Fi / Bluetooth / Ethernet / CAN / RS485 connectivity
- Three year limited warranty
- Ā
Specifications
| INPUT/OUTPUT POWER RATING & CURRENT | 9.6kW (240V AC*40A)Ā Output Amperage Adjustable Via Mobile App, From 6A To 40A |
| INPUT/OUTPUT VOLTAGE | 208VĀ±15%, 60Hz |
| NETWORK TYPE | L1/N+PE |
| CONNECTOR TYPE | SAE J1772, 25ft (7.5m) |
| GROUND FAULT DETECTION | 20mA CCID |
| Ā PROTECTION | Overcurrent, Overvoltage, Undervoltage, Integrated Surge Protection |
| POWER MEASUREMENT ACCURACY | +/- 1.0% From 1% To Full Scale |
| POWER CORD | NEMA 14-50 |
| ENCLOSURE RATING | NEMA 4 |
| OPERATING TEMPERATURE RANGE | -40Ā°F ~+131Ā°F (-40Ā°C ~+55Ā°C) |
| STORAGE TEMPERATURE RANGE | -40Ā°F ~+185Ā°F (-40Ā°C ~+85 Ā°C) |
| MOUNTING | Wall Or Floor Using A Pedestal |
| DIMENSIONS (HĆWĆD) | 13x7x3in (336x187x85mm) |
| WEIGHT TOTAL | Ranges Between 13lbs. (5.9 kg) - 15.9 lbs. (7.2 kg) Based On Model |
| STATUS INDICATION | LED/APP |
| USER INTERFACE | Autel Charge APP; Autel Charge Cloud |
| CONNECTIVITY | Bluetooth, Wi-Fi, Ethernet, CAN, RS485 (For Energy Meter Connection) |
| COMMUNICATION PROTOCOLS | OCPP 1.6J (Can Be Upgraded To OCPP 2.0.1 Later) |
| USER AUTHENTICATION | APP, AutoStart, RFID Card |
Ā
