Autel - ADAS Bay Max 14K Lift

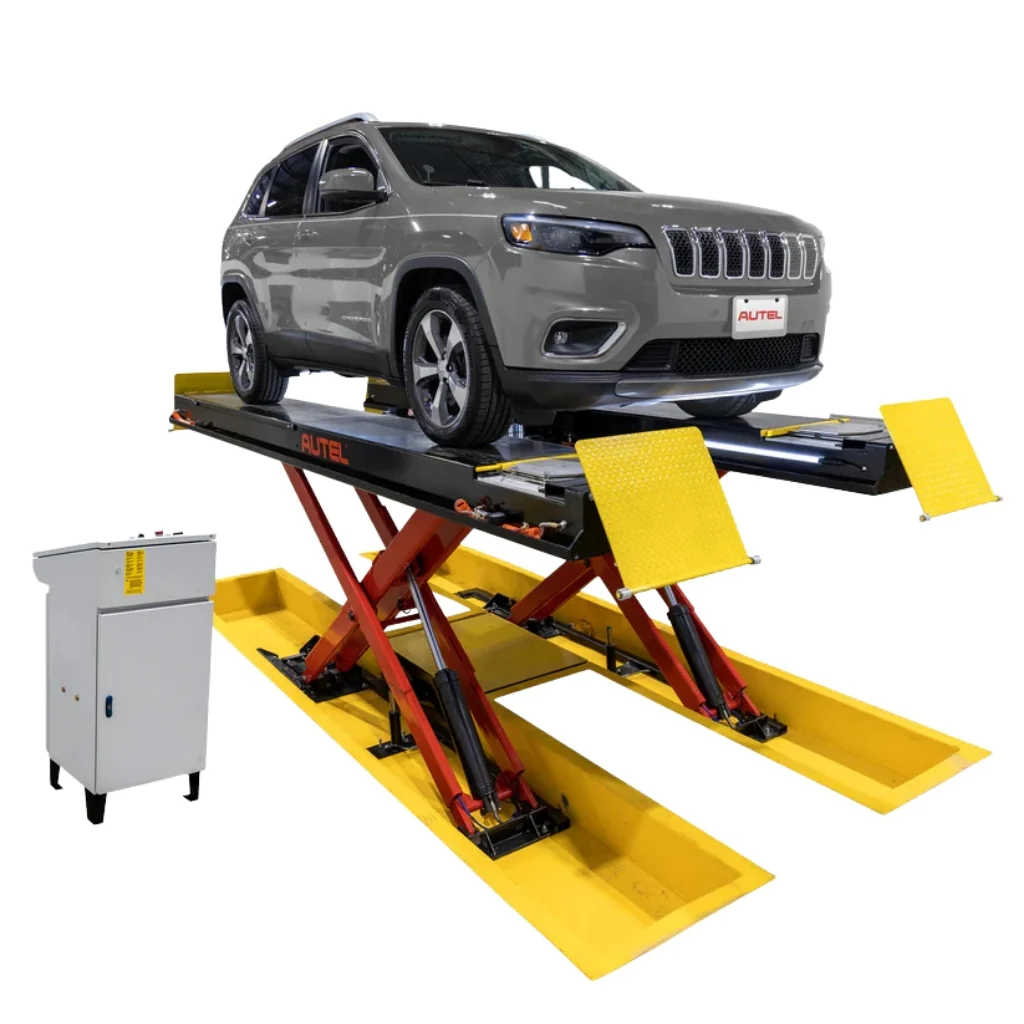

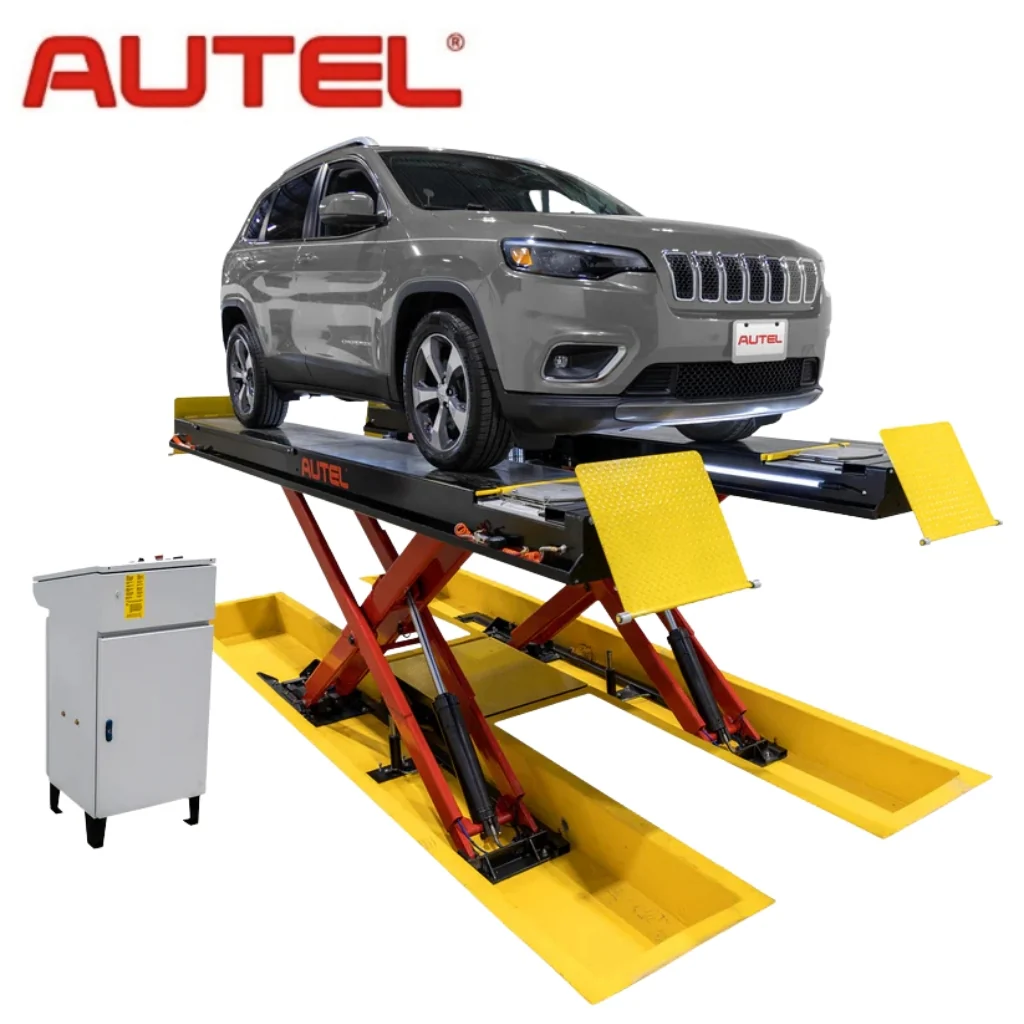

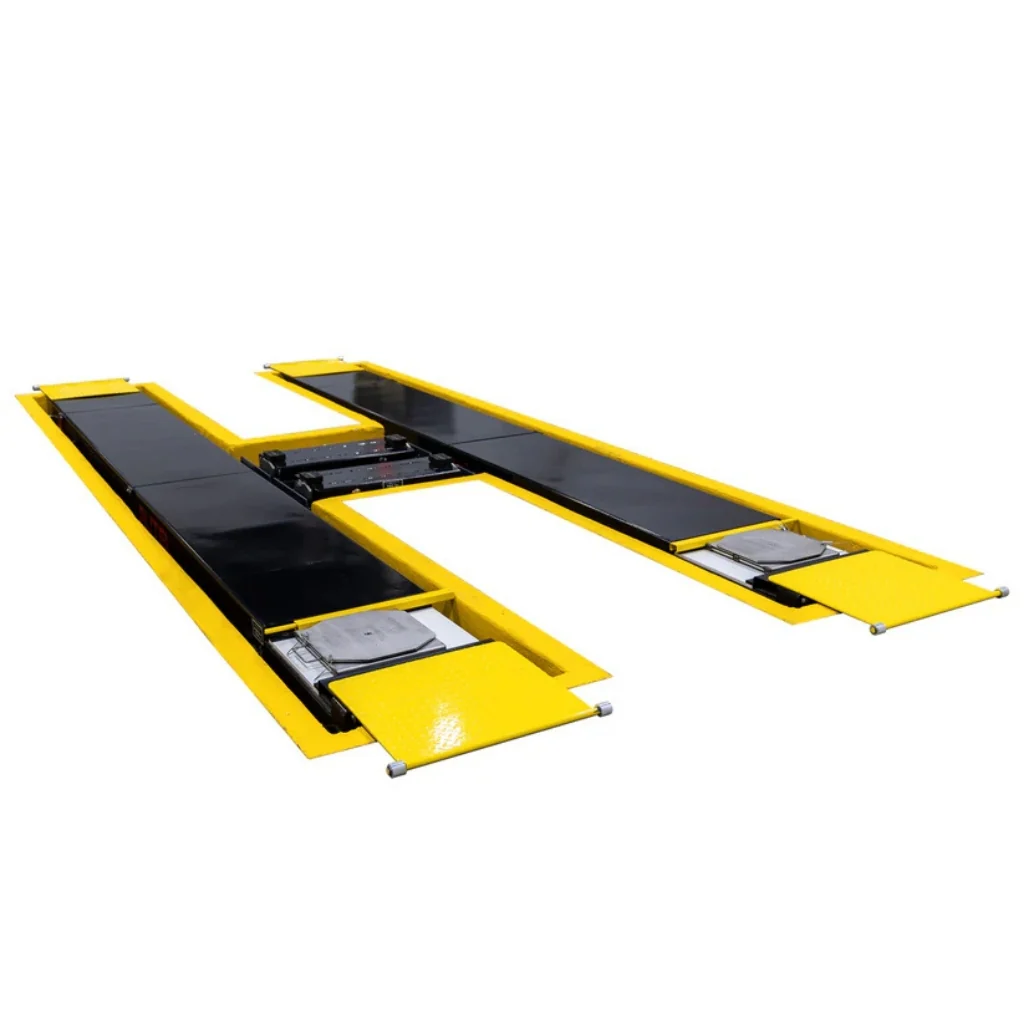

The Autel ADAS Bay Max 14K Lift is a flush-mounted hydraulic scissor lift, purpose-built for alignment shops that also perform ADAS (Advanced Driver Assistance Systems) calibrations. It combines mechanical repair capacity, traditional wheel alignment, and 360° ADAS calibration in a single bay space, minimizing the need to move vehicles between stations. The lift includes a floor lift table allowing technicians to safely work under the entire length of a raised vehicle. It is ALI certified and manufactured in North America, built with durability, corrosion resistance, and precision in mind.
Features:
- Flush‐mounted design (flush with the floor) with a hydraulic scissor mechanism
- Includes a floor lift table for jack storage / safe access underneath the vehicle

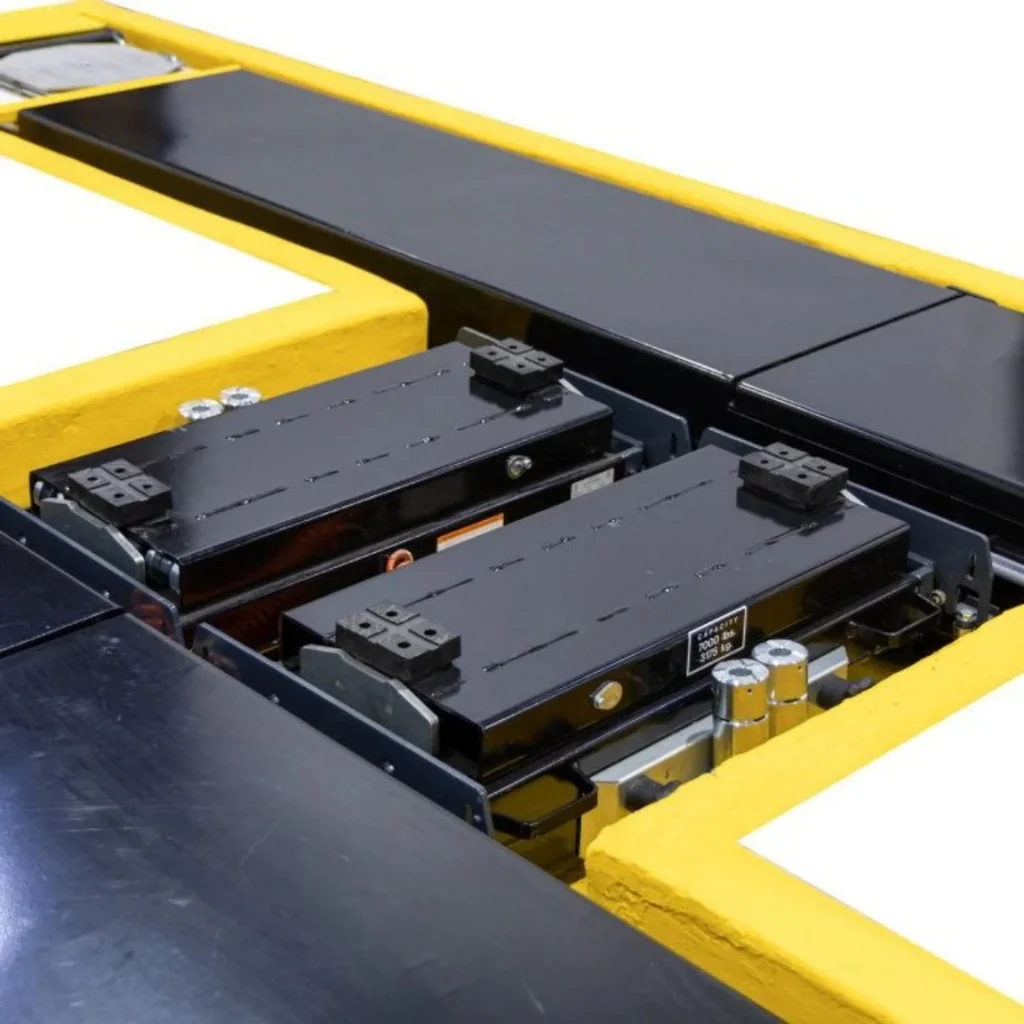

- Two jacking beams (7,000 lbs capacity each)
- Front & rear opening runways with flip-down wheel stops

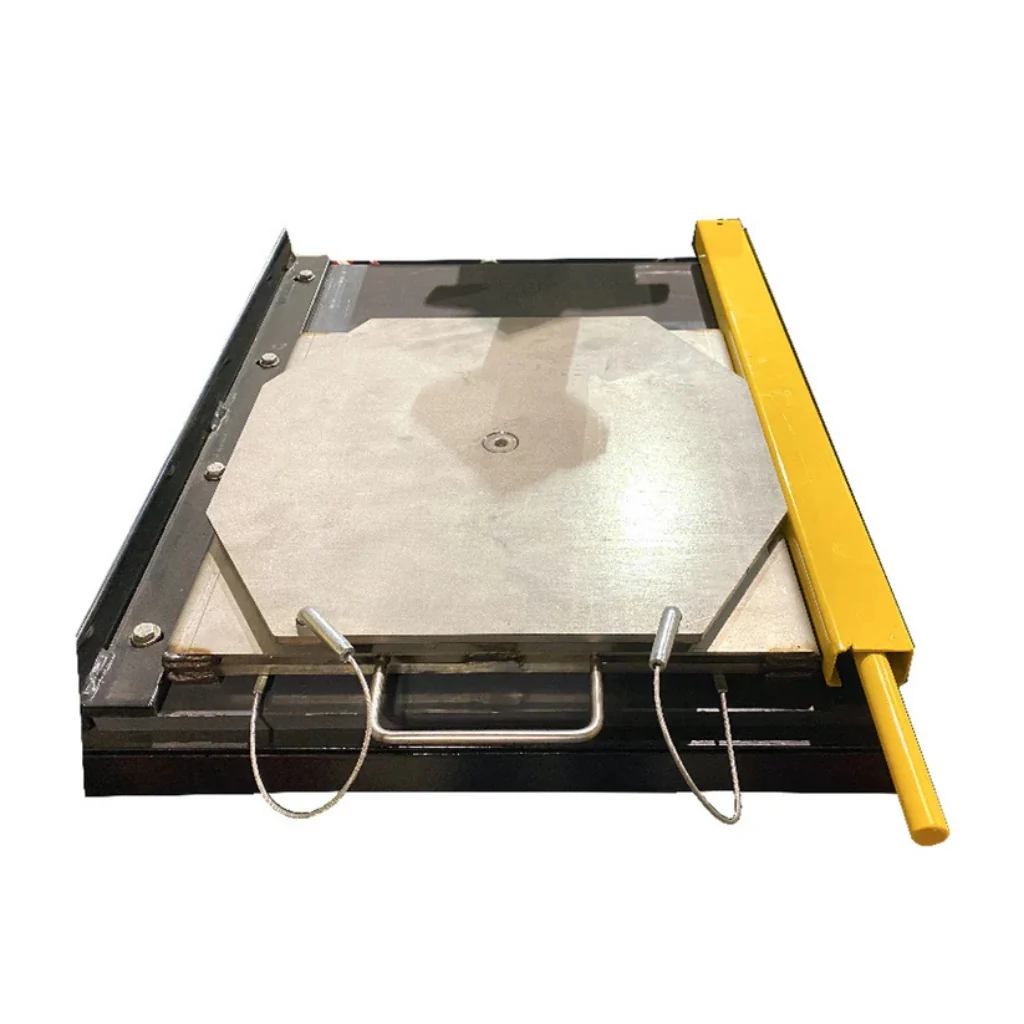

- Stainless steel front radius plates and rear slip plates (with turn plate pocket protectors for paint protection)
- Low-angle approach ramps for easy vehicle entry
- Double-wide runways (26″ wide) with built-in “Z”-rails for structural strength (on 14K version)

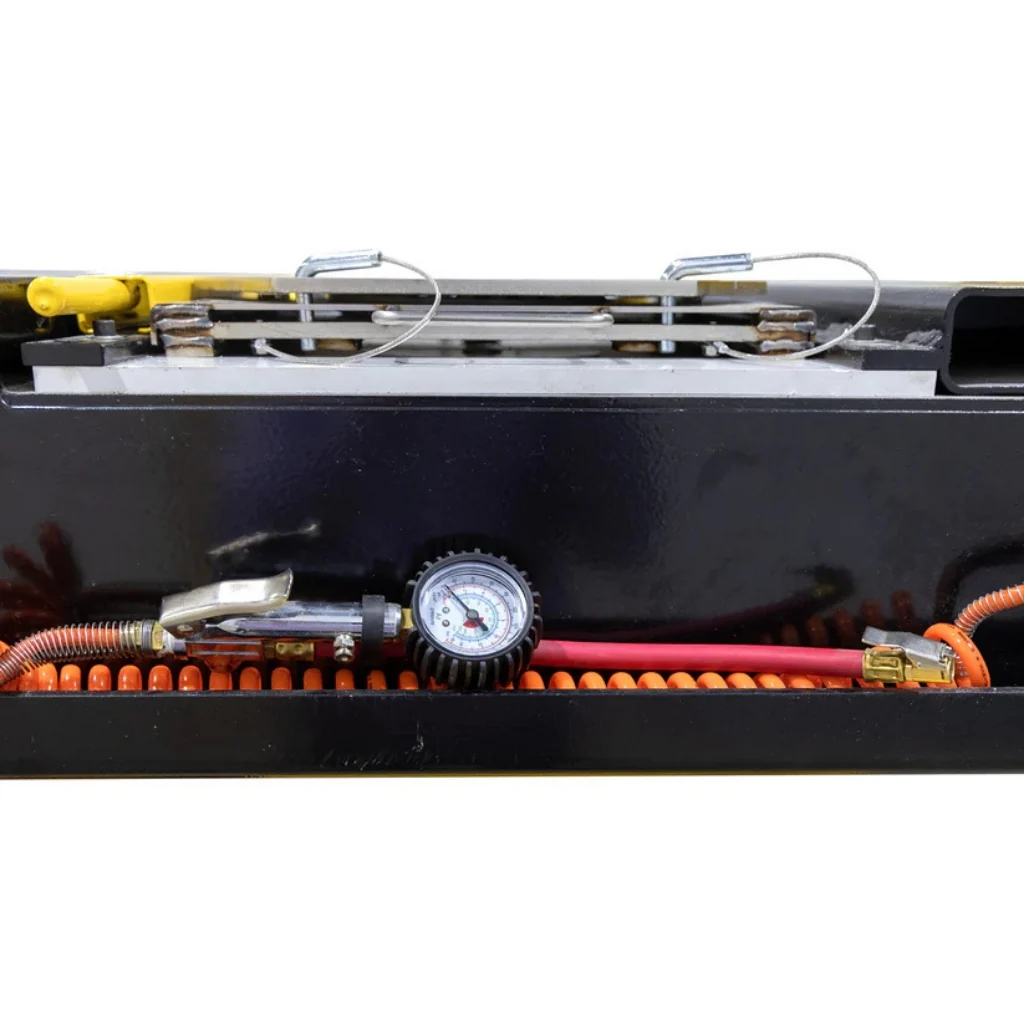

- Built-in runway air tire inflation kit at each wheel

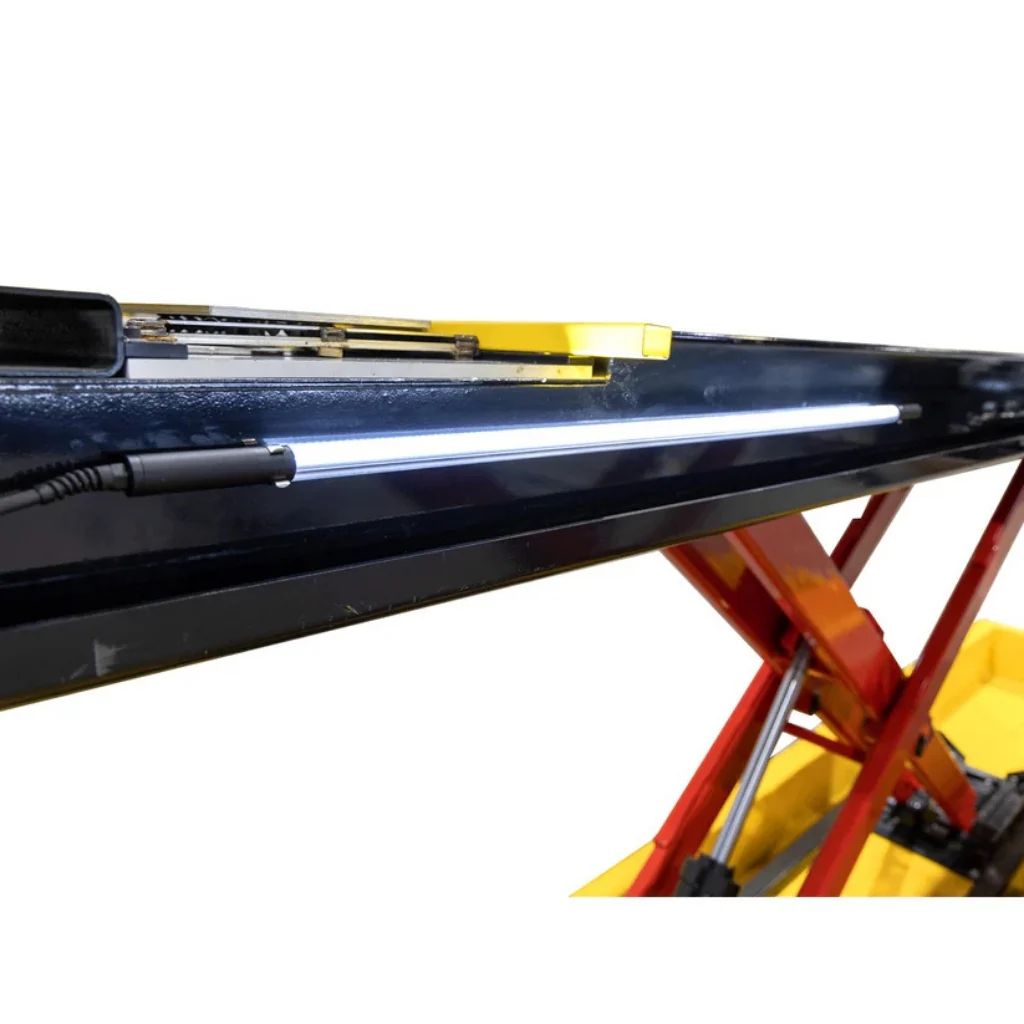

- LED light kits (shatterproof, 24-inch) with automatic shut-off
- Premium double-baked powder-coated finish, industrial-grade rust proofing (Krown)

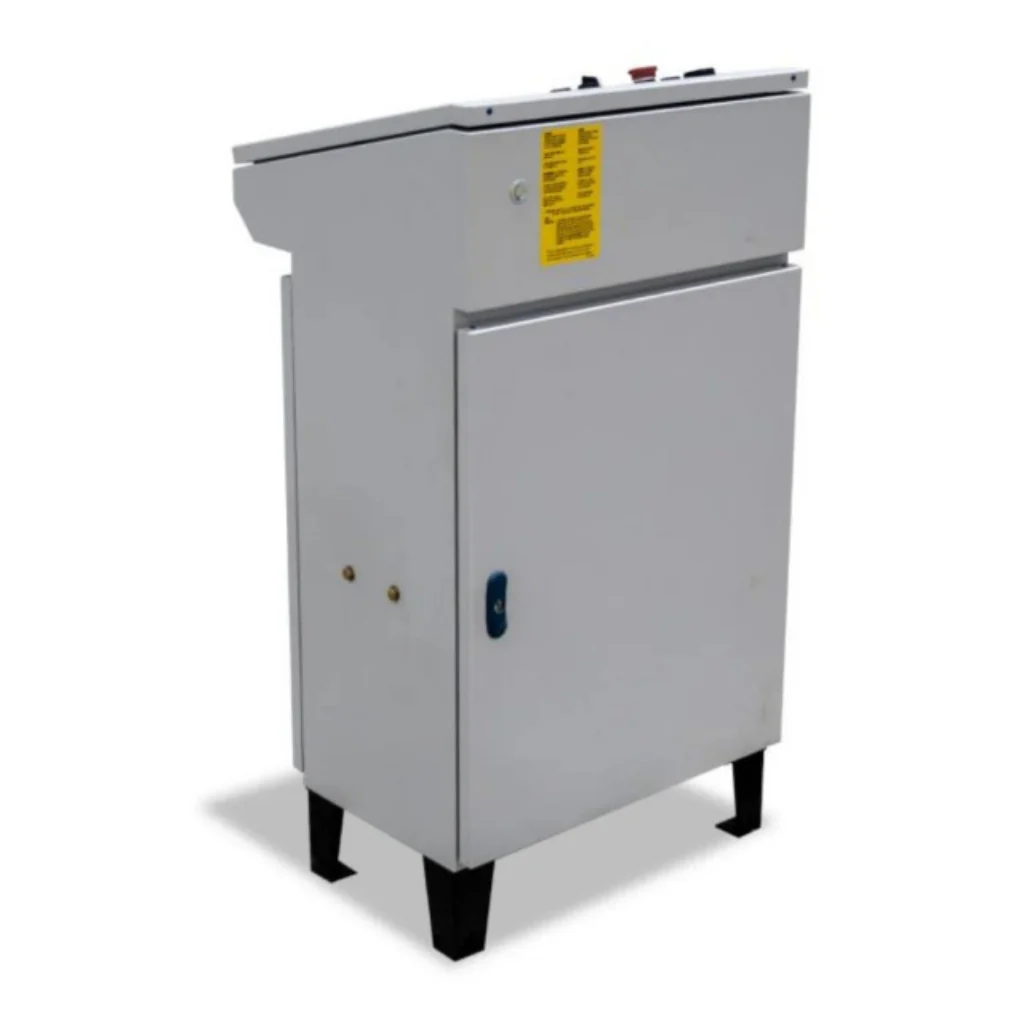

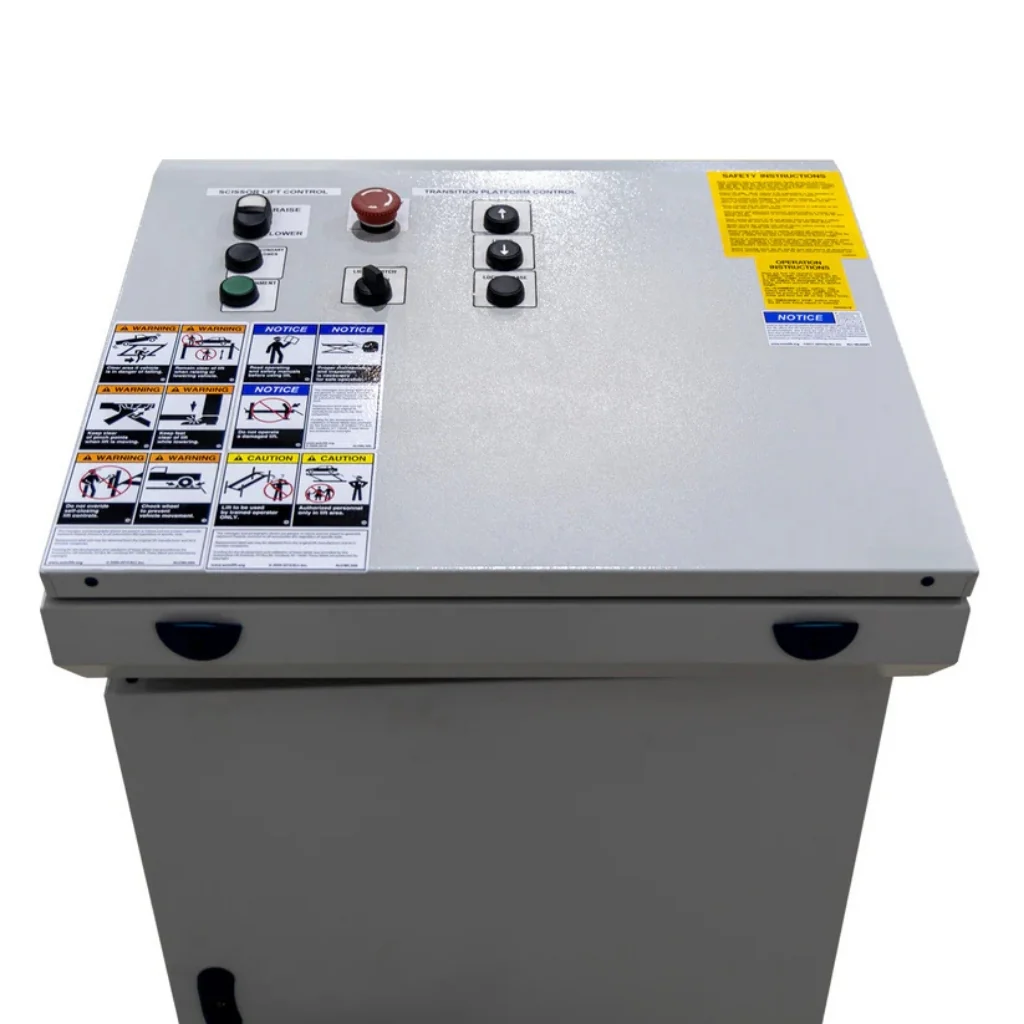

- Enclosed console control power unit
- ALI (Automotive Lift Institute) certified
| Specification | Value |
|---|---|
| Lifting Capacity | 14,000 lbs (≈ 6.4 metric tonnes) |
| Deck / Runway Length | 203″ / 5,156 mm |
| Deck / Runway Width | 26″ |
| Overall Length | 260-3/4″ / ≈ 6,623 mm |
| Overall Width | 91-1/2″ / ≈ 2,324 mm |
| Width Between Runways | 41″ / ≈ 1,041 mm |
| Deck Width | 23″ / ≈ 584 mm |
| Lowered Height | 10-3/4″ / ≈ 273 mm |
| Raised Height | 74″ / ≈ 1,880 mm |
| Min Wheelbase (4-wheel alignment) | 84″ / ≈ 2,235 mm |
| Max Wheelbase (4-wheel alignment) | 164-1/2″ / ≈ 4,178 mm |
| Max Wheelbase (2-wheel alignment) | 178″ / ≈ 4,521 mm |
| Max Service Wheelbase | 185″ / ≈ 4,699 mm |
| Lift Time (lower → full raise) | ~58 seconds |
| Power Requirement | 230 V AC, 60 Hz, single phase, 25 amp |
| Shipping / Installed Weight | ~6,230 lbs / ≈ 2.8 metric tonnes |
