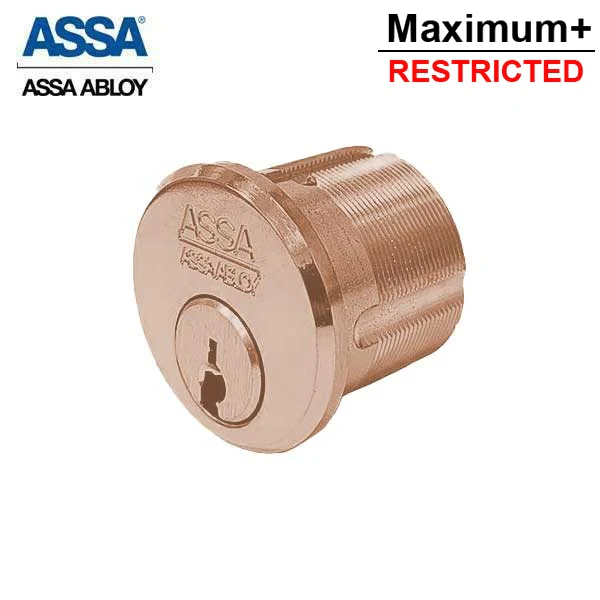

ASSA - Maximum+ Restricted - Mortise Cylinder - 1-1/8" - Optional Keying - 612 - Satin Bronze

ASS-R2851-1-612-COMP-(KA/KD)-0A7

ASSA Maximum+ Restricted 1-1/8" Mortise Cylinder based on Maximum+ patented key profile. These non UL437 cylinders give customers the flexibility to install a low-cost conventional cylinder in openings that do not require a High-Security lock cylinder. The Maximum+ Restricted cylinder is less expensive providing cost savings where key control is the main feature

Restricted: Has only 1 independent locking mechanism. No Side pins.

• Size: 1-1/8"
• Finish: 612 US10 - Satin Bronze
• CAM: Adams Rite
• Includes: 2 Restricted Keys, Duplication Card and Cover Ring
• Drill resistant cylinder housing and plug
• Case-hardened steel inserts and stainless steel pins
• Extremely close tolerances

• Can be easily rekeyed in the field
• Cylinder housing and plug are made of high-quality brass
• Stainless steel top pins
• Bottom pins and master pins are nickel silver





Maximum+ Restricted Cylinders Benefits:	Cylinder housing and plug are made of high-quality brass • Stainless steel top pins • Bottom pins and master pins are nickel silver • Counter mill in each chamber position to enhance pick resistance • ASSA’s generous keying capabilities allow over 160,000 change keys under a single master key
Maximum+ Keys Benefits:	• Innovative key design protected by the U.S. and international utility patents • Patented key control offers the ultimate protection from unauthorized duplicate keys • Top cuts can be generated on standard, quality code cutting equipment • Special key stamping and custom coining available
Certification:	• ASSA’s patented key systems are legally protected against unauthorized key duplication through rights granted by the utility patent • Maximum+ key listed under U.S. Patent number 8,205,473
Warranty:	ASSA warrants its cylinders against defective workmanship or wears resulting from defects for one year • ASSA warrants that if a key should break under normal usage, ASSA will replace it at no charge
Technical Information:	• High-quality nickel silver material • Key combination is read from tip to bow • No. 1 cut is deepest, No. 9 is shallowest
