ASSA - M90 Series - Maximum+ Restricted - Double Cylinder Deadbolt - Optional Keying - 626 - Satin Chrome - Grade 2

ASS-R28M9020-626-COMP-KA / ASS-R28M9020-626-COMP-KD

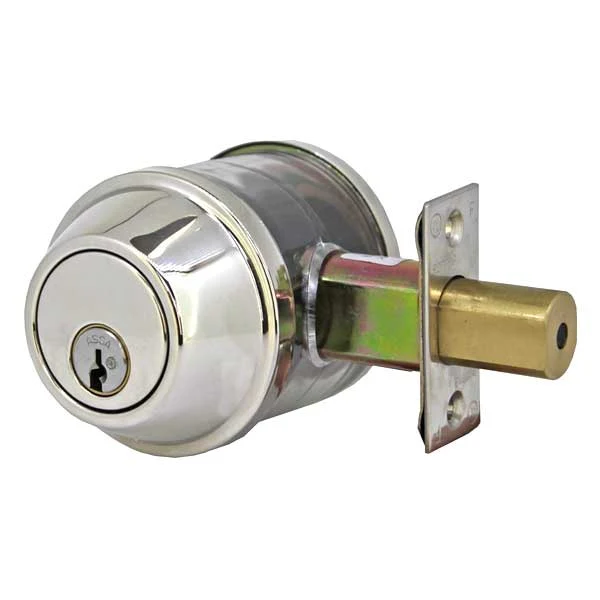

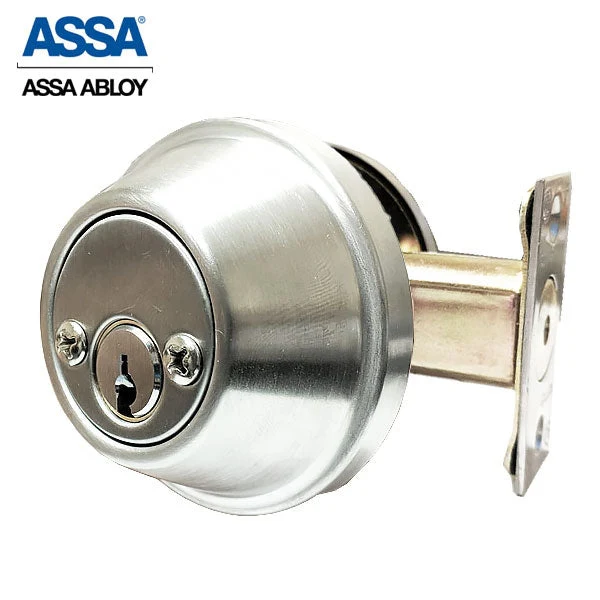

ASSA - M90 Series - MAX+ / Maximum+ High Security Restricted Double Cylinder Deadbolt - 626 - Satin Chrome - Grade 2 features a saw-resistant bolt, pick resistant ASSA cylinder, and an adjustable 2 3/8" or 2 3/4" backset

Restricted: Has only 1 independent locking mechanism. No Side pins.



Handing	Non-Handed for Left or Right hand doors
Cylinder	Maximum+ Restricted Cylinder Double Cylinder with Thumb Turn Interior

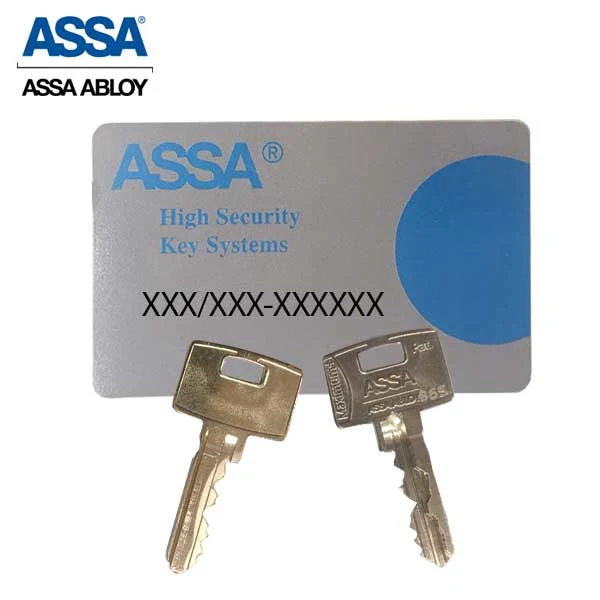

Keys	2 Patented Restricted Keys & Duplication Card
Keyed	Alike / Different
Door Thickness	1-3/8" (35mm) to 1-3/4" (45mm)
Backset	Adjustable Backset 2-3/4" (70 mm) to 2 3/8" (60 mm)
Bolt	Steel hardened bolt pin
Rosette	Steel core rosette
Features	Security Shield - Guards against ice pick attack
Finish	626 - 32D - Satin Stainless
Certifications	ANSI/BHMA A156.5 Grade 2 & UL 3 hours fire rating certified
Manufacturer Warranty	Limited lifetime mechanical warranty
