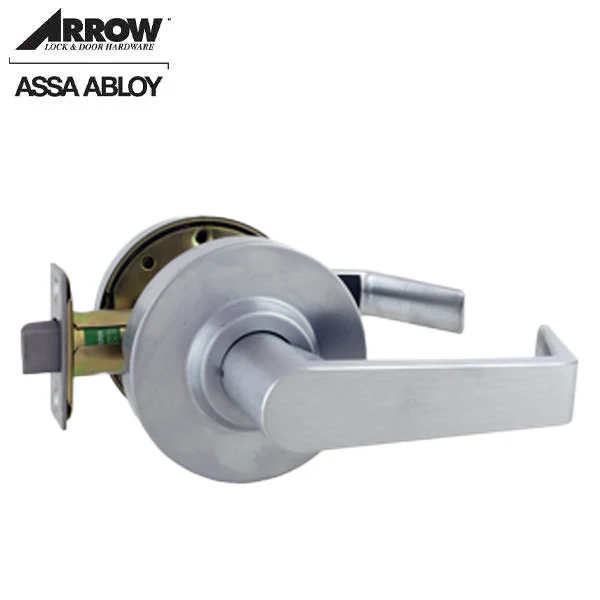

Arrow - RLX01 - Commercial Lever Set - Sierra Lever - 2-3/4" Backset - Passage - Satin Chrome - Grade 2

RLX series is a robust grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an arrow professional replacement product featuring removable through bolts. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

Lock Function	Passage
Handing	Non-Handed
Door Thickness Min	1-3/8" (minimum), 1-3/4" (maximum)
Cylinder	Standard: 6-Pin CS Keyway
Backset	2-3/4"
Latch bolt type	Deadlatch
Latch bolt Faceplate Size	2-1/4" x 1-1/8"
Latch Bolt Face Type	Square Corner
Latch Bolt Throw	1/2"
Lever Style	Sierra
Lever	Free Wheeling
Strike	4-7/8"
Finish	Satin Chrome
Certifications	BHMA A 156.2, UL Listed
Rose/Escutcheon Style	Rose
Rose/Escutcheon Size	3-11/32"
Warranty	5-year mechanical manufacturer's warranty
