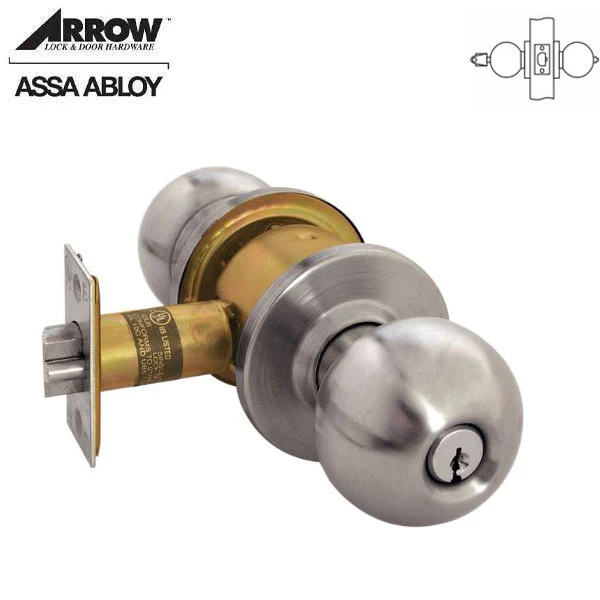

Arrow - RK11 - RK Series Cylindrical Lockset - 2 3/8" Backset - 32D - Satin Stainless Steel - Entrance - Schlage "C" Keyway - Grade 2
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
More Details Below
| Function | RK11 Entrance |
| Backset | 2-3/8" (60.31mm) |
| Latch | Brass 1/2" (12.7mm) throw |
| Latch front | 1" x 2-1/4" (25.40mm x 57.15mm) |
| Knob | Ball Knob - 2-1/8" (53.97mm) |
| Roses | Wrought brass 2-1/2" (63.5mm) diameter. Projection from face of door 2-3/4" (69.85mm) |
| Strike | R60, 2-3/4” “T” strike |
| Door thickness | 1-3/8" (34.93mm) to 1-3/4" (44.45mm) |
| Cylinder | Schlage “C” keyway, 6 pin w/ 2 keys |
| Handing |
Non-handed |
| Thru-bolts | Removable thru-bolts standard on RL Series |
| Finish | 630 - US32D - Stainless Steel |
| Certification | UL Listed, ANSI-A156.2 Grade 2 Plus 3 Hour Fire Rating |
| Manufacturer's Warranty | Five Year Mechanical |
Downloads
$34.38
Arrow - RK11 - RK Series Cylindrical Lockset - 2 3/8" Backset - 32D - Satin Stainless Steel - Entrance - Schlage "C" Keyway - Grade 2—
$34.38
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The RK Series cylindrical locksets are an economical value for a variety of application. Perfect for multi-family housing markets, as well as light commercial applications.
More Details Below
| Function | RK11 Entrance |
| Backset | 2-3/8" (60.31mm) |
| Latch | Brass 1/2" (12.7mm) throw |
| Latch front | 1" x 2-1/4" (25.40mm x 57.15mm) |
| Knob | Ball Knob - 2-1/8" (53.97mm) |
| Roses | Wrought brass 2-1/2" (63.5mm) diameter. Projection from face of door 2-3/4" (69.85mm) |
| Strike | R60, 2-3/4” “T” strike |
| Door thickness | 1-3/8" (34.93mm) to 1-3/4" (44.45mm) |
| Cylinder | Schlage “C” keyway, 6 pin w/ 2 keys |
| Handing |
Non-handed |
| Thru-bolts | Removable thru-bolts standard on RL Series |
| Finish | 630 - US32D - Stainless Steel |
| Certification | UL Listed, ANSI-A156.2 Grade 2 Plus 3 Hour Fire Rating |
| Manufacturer's Warranty | Five Year Mechanical |
