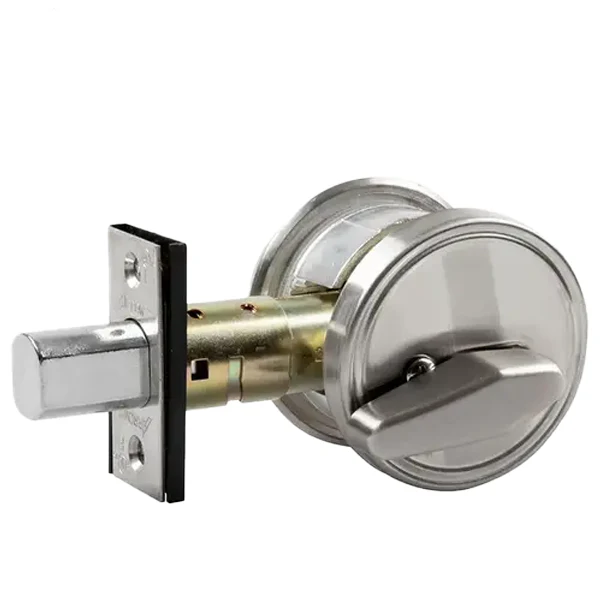

Arrow - DBX61 - Commercial Deadbolt - Single Cylinder - Adjustable Backset - Arrow A Keyway - Satin Stainless Steel - Grade 2
The DBX Series is a Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low-profile package. It is ideal for commercial common areas and residential use. The DB series is a Grade 2 commercial deadbolt that features an adjustable backset in an attractive low-profile package. It is ideal for commercial common areas and residential use.
Features:
- Designed to meet ANSI A156.36, Auxiliary Locks, Grade 2
- Underwriters Laboratories (UL and CUL) listed for use on 3-hour fire doors when used in conjunction with a rated primary latching device.
- Latch Bolt – 1" (25mm) throw brass deadbolt with hardened
- free spinning, steel pin insert
- Deadbolt Front – 2-1/4" (57mm) x 1" (25mm). Plastic spacer supplied for 1-1/8" (27.5mm) mortise.
- Cylinder – Solid brass, drilled for 6-pins pinned to 5. Supplied
- With 2 nickel-plated brass keys per keyed lock.
Specifications:
| Finish | Satin Stainless Steel 630/US32D |
| Keyway | Arrow A Keyway, KA4 |
| Function | 61 - Single Cylinder Deadbolt |
| Keying | Keyed Alike Group of 4 |
| Cylinder Type | Conventional Cylinder |
| Bolt protection | 1 in |
| Keys | Cut |
| Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In |
| Latch Type | Deadbolt |
| Special Marks | Conventional Cylinder |
