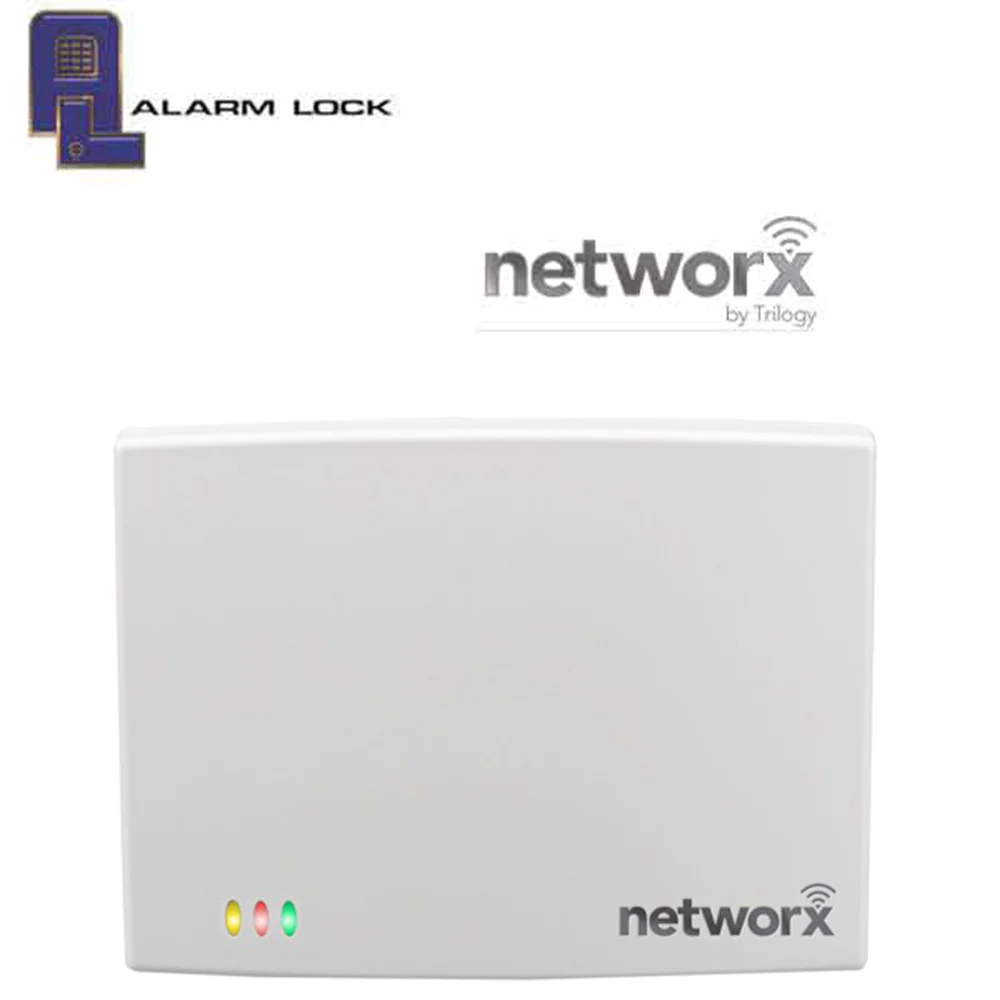

Alarm Lock Networx - IME2 - Version 2 Gateway
ALL-AL-IME2
Hardwired Gateway, interfaces up to 63 Networx locks with PC network with hardwired Ethernet RJ45
IT-friendly the AL-IME2 is a Gateway device used within the Trilogy Networx wireless system. This Version 2 Gateway combines with wireless wall-mounted expanders and plug-in wireless expanders to cover more building space with 1 ip address vs. 8. The result is an increased range with a reduction in project costs. Installation is simple, with the AL-IME2 only requiring access to one RJ-45 Ethernet network cable and connection to an AC outlet.
Features and benefits:
- Version 2 model virtually same as the original œversion 1� Gateways, but with added ability to expand your Networx lock system with up to 7 Expanders (model AL-IME2-EXP)
*Expanders cannot communicate with older œnon-version 2� Gateways* - Next-generation of Networx Gateways
- Mount within 175 feet (radially) from the intended wireless lock location(s)
*Open areas increase range while concrete building construction, walls, ceilings, and narrow corridors decrease range* - Expanders should be mounted in elevated areas; however, mounting in a drop ceiling can adversely affect signal strength
*Preferred mounting position = 6 to 12³ below standard 8-9 foot ceiling* - Cost-effective and easier to wire than conventional gateways
- Simplified ˜Plug and Play' setup; Networx system automatically identifies all newly powered Expanders and quickly self-determines the best wireless signal pathways
- Each Gen. 2 Gateway and a maximum of seven (7) Expanders can be addressed as one group “ IT Friendly!
- Total of 99 addressable groups supported (addressable by two rotary switches)
- Both Generation 2 Gateways and matching AL-IME2-EXP and plug-in AL-IME2-PIE Expanders have new modern styling, and three LED indicators, blending into any decor
Note: Version 2 Gateways CAN be mixed into an existing system that includes older œnon-version 2� gateways.
| Dimensions | 4.5 (H) x 6.0 (W) x 1.94 (D) in. |
| Environmental Operating Temperature: | -4˚ to 140˚F (-20˚ to 60˚C) |
| Storage Temperature Range | -40° to 185°F (-40° to 85°C) |
| Network Interface | Ethernet, 10Base-T or 100Base-TX (using RJ-45 jack) |
| Wireless Protocol | 900MHz, DHCP, TCP/IP, UDP/IP |
| Power | 5 “ 6 volts AC |
| Current | 650 mA |
| Manufacturer | Alarm Lock |
| Brand | Trilogy Networx |
| Weight | 0.5 lbs |
| Warranty | 2 Year Manufacturer |
Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here
