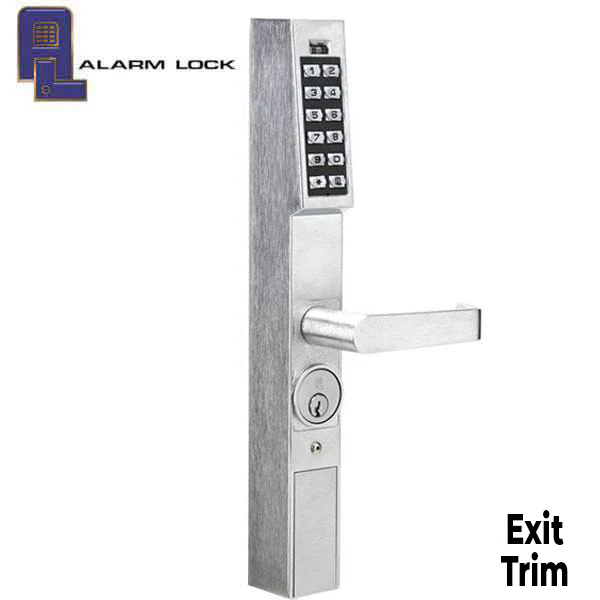

Alarm Lock Trilogy - DL1200ET - Narrow Stile Keypad Exit Lever Lock - 26D - Satin Chrome - Grade 1

The Trilogy Narrow Stile Keypad Exit Lever Lock models support Arrow, DCI, Von Duprin and Dorma panic exit bars. Get field-proven Trilogy® keyless access lock convenience anywhere there's a Narrow Stile compatible door.

Important Note: Tailpiece is sold separately and is required for most installations (compatibility table below)

---	Tailpiece	Compatible Devices
	ALL-TP-1691	Arrow S1200/1250, Von Duprin 22 & Dorma 5300, DCI 1200/1300 Panic Devices
	ALL-TP-1693	Corbin ED8200 Panic Device
	ALL-TP-1694	Von Duprin 33 LH (RHR) Devices only



Specifications
LOCK FUNCTION	Narrow Stile Keypad Exit Lever Lock
DOOR THICKNESS	Only Stile thickness 1 ¾"
BACKSET	31/32”,1 1/8’ and 1-1/2”
HANDING	Non-handed; fully field-reversible
LEVER TRIM	Aluminum door retrofit Arrow, DCI, Von Duprin and Dorma panic exit bars
POWER	Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typical on 2 lithium 3V batteries, supplied; low battery alert
CYLINDER	1-1/4” supplied (Supports 1-1/8, 1-1/4, and 1-3/8”)
PROGRAMMABLE	Yes
USER CODES	keypad supports 100 users, fingertip/keypad programmable
WEATHERPROOF	-31˚ to +151˚F (-35˚ to +66˚C)
FINISH	US26D Satin Chrome



Return Policy: We accept returns on unopened products up to 30 days after the date of purchase. We do not accept opened/damaged/defective goods. To return affected items please contact Alarm Lock directly at 1-800-645-9440 or visit their support page here



Downloads:
Brochure
