Adams Rite - MS Deadlock - MS1851S - 1-1/8" Backset - ANSI Size - Straight Bolt - Radial Faceplate - Dark Bronze - Metal Door
LIST PRICE: $72.00
ADR-MS1851S-310-313

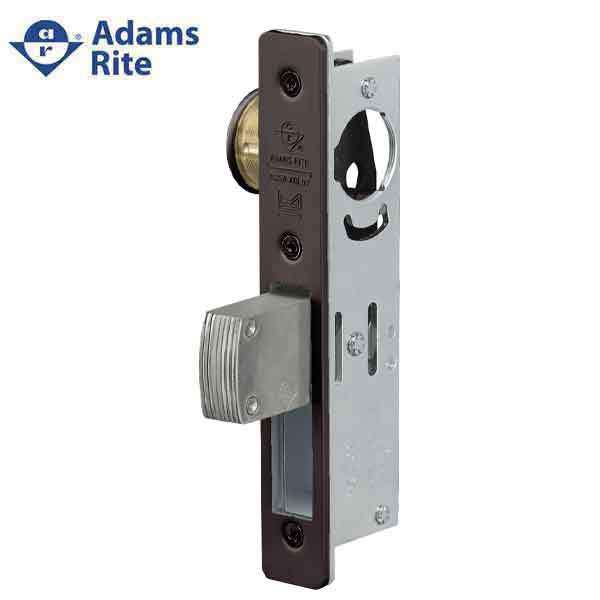

The ANSI size MS1850S Series MS® Deadlock utilizes a laminated stainless steel bolt, both activated by a pivot mechanism to provide maximum security for hollow metal doors.
More Details Below
Features
| Backset | 1-1/8" [28.6 mm] |
| Case | Measures 1” x 6” x 2-1/4” [25.4 mmx 152.4 mm x 57.2 mm]. Steel with corrosion-resistant plating. |
| Bolt |
Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw. |
| Faceplate | Radial - Measures 1-1/4” x 8” [31.8 mm x 203.2 mm] |
| Door Types | Metal Doors Only |
| Standard Package | Individually boxed with faceplate and mounting screws. |
Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately
For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), the MS1850SN Series MS® Deadlock provides maximum security and ease of installation.
Operation
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, available separately or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LIST PRICE: $72.00
ADR-MS1851S-310-313
The ANSI size MS1850S Series MS® Deadlock utilizes a laminated stainless steel bolt, both activated by a pivot mechanism to provide maximum security for hollow metal doors.
More Details Below
Features
| Backset | 1-1/8" [28.6 mm] |
| Case | Measures 1” x 6” x 2-1/4” [25.4 mmx 152.4 mm x 57.2 mm]. Steel with corrosion-resistant plating. |
| Bolt |
Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw. |
| Faceplate | Radial - Measures 1-1/4” x 8” [31.8 mm x 203.2 mm] |
| Door Types | Metal Doors Only |
| Standard Package | Individually boxed with faceplate and mounting screws. |
Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam. Cylinder Sold Separately
For hollow metal or wood doors prepared for hardware according to the specifications of the American National Standards Institute (ANSI), the MS1850SN Series MS® Deadlock provides maximum security and ease of installation.
Operation
360° turn of key or thumbturn projects or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder, available separately or thumbturn such as the 4066 Thumbturn, available separately. Lock accepts cylinder from either or both sides.
