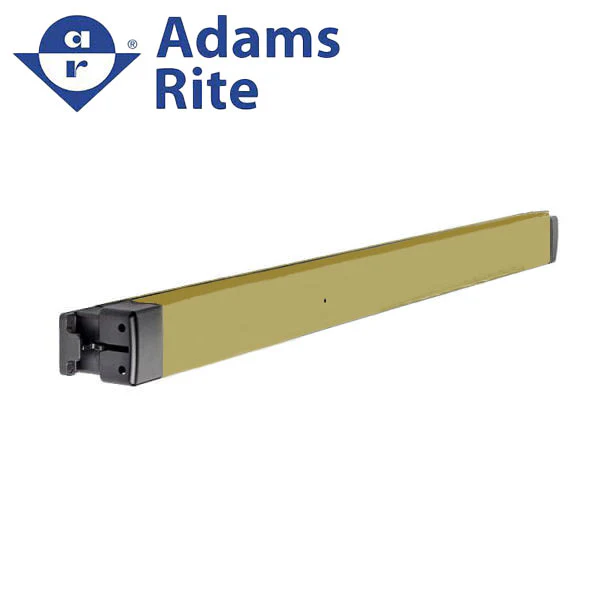

Adams Rite - 8700 - Wide Stile Rim Exit Device - 36" - Satin Brass - Fire Rated - Grade 1
The 8700 Series Wide Stile Rim Exit Device is only the latest and greatest in Adams Rite quest for excellence. The 8700 is designed for wide stile hollow metal and wood applications that require a life-safety exit device with A Starwheel interlocking solution.
Starwheel Bolt: 1. When door closes, the interlocking noseguard and Starwheel bolt close around the strike. The deadlocking slide springs over, locking the Starwheel bolt to the strike. 2. When push bar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading
Features:
- Life safety
- Non-handed operation and lever entry trim is field reversible
- Patented top latching mechanism interlocks the door to frame
- Strong and durable construction for a high level of security
- Easy to install with clean and unobtrusive design for clean sight lines
- Standard self-tapping screws fastener
- Standard dogging with hex key
- NOTE: This Item Does NOT Qualify for FREE Shipping- Please contact your sales representative to get shipping costs. Call 1-800-878-6604 between Monday and Friday, 9AM-6PM EST
Features
| Certifications : | UL 305 Panic Hardware |
| Materials: | Push bar made of extruded aluminum, clad or anodized in a variety of finishes |
| Handing: | Non-handed, Field reversible |
| Push bar Length | Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width. |
| Door Thickness | Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. |
| Stile Width | Minimum 3-3/4" [95.3 mm]. Door construction may require additional stile width to meet fire ratings and provide adequate strength. |
| Projection | 2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged. |
| Dogging | Standard dogging with hex key or optional cylinder dogging. |
| Fasteners | Standard self-tapping screws and machine screws. |
| Cylinders | Fits any standard 1-5/32" [29.4 mm] diameter rim cylinder |
| Strike | Standard hardened steel strike (included). |
Download:
- 8700 Catalog Page
- 8000 Series Overview
- Installation Instructions
