Adams Rite - 8803 - Narrow Stile - Rim Exit Device - 36" - Anodized Black

LIST PRICE: $500.00

The 8800 Series Narrow Stile Rim Exit Device is designed for
narrow stile aluminum applications that require a life-safety exit

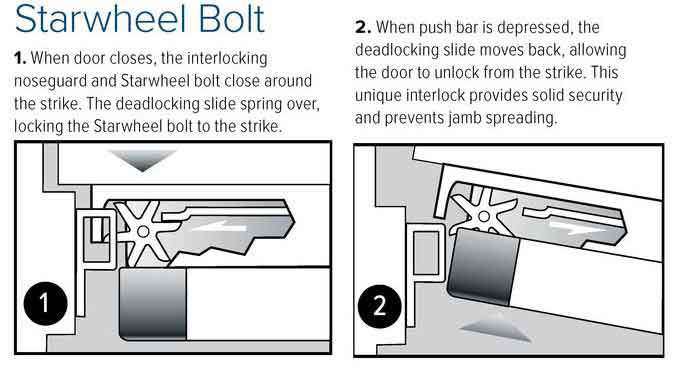

device with Starwheel interlocking solution. Designed for use in
applications with single doors or pairs of doors with a mullion.

More Details Below

Features

Certifications	UL 305 Panic Hardware ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2
Materials	Push bar made of extruded aluminum, clad or anodized in a variety of finishes
Handing	Device is non-handed.
Push bar Length	Standard size: 36" [914.4 mm] Standard width bars can be field cut to the next smallest opening width.
Door Thickness	Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width	Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors
Projection	2-5/8" [66.7 mm] when fully projected, 1-5/8" [41.3 mm] when dogged.
Dogging	Standard dogging with hex key or optional cylinder dogging.
Fasteners	Standard machine screws.
Cylinders	Fits any standard 1-5/32" [29.4 mm] diameter rim cylinder
Strike	Standard strike and narrow versions for centering doors in 4" jamb (both strikes included).



Download Installation Instructions Here
