Adams Rite - 4510 - Standard Duty Deadlatch - 7/8" Backset - LH /RHR - Mortised 2-5/8" - Flat Faceplate - Dark Bronze - Metal Door
The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape.
More Details Below
Features

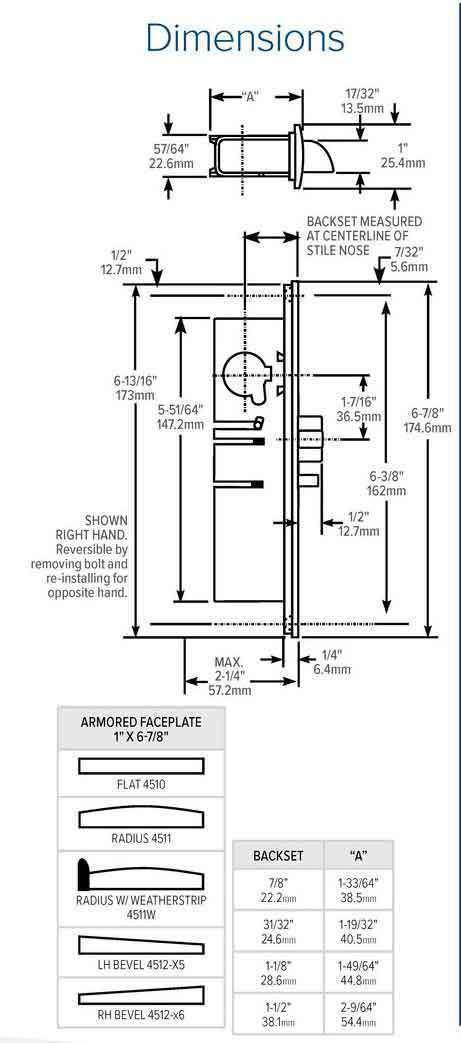

| Backset | 7/8" |
| Case | Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x 147.6 mm x depth]. Depth varies by backset |
| Bolt Holdback | While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging. |
| Latchbolt | All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2" [12.7 mm x 25.4 mm x 12.7 mm] throw. |
| Auxiliary Bolt | All metal. Deadlocks latchbolt to prevent āloidingā or case-knife entry |
| Faceplate | Flat - Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Handing | Left handed or Right Hand reverse |
| Door Types | Aluminum , Swinging Door |
| Strike | Standard strike furnished is Mortised (4902) 2-5/8" - Flat/Standard Jamb |
| Finish | 313 - Dark Bronze Anodized |
| Standard Package | Individually boxed with faceplate and mounting screws. |

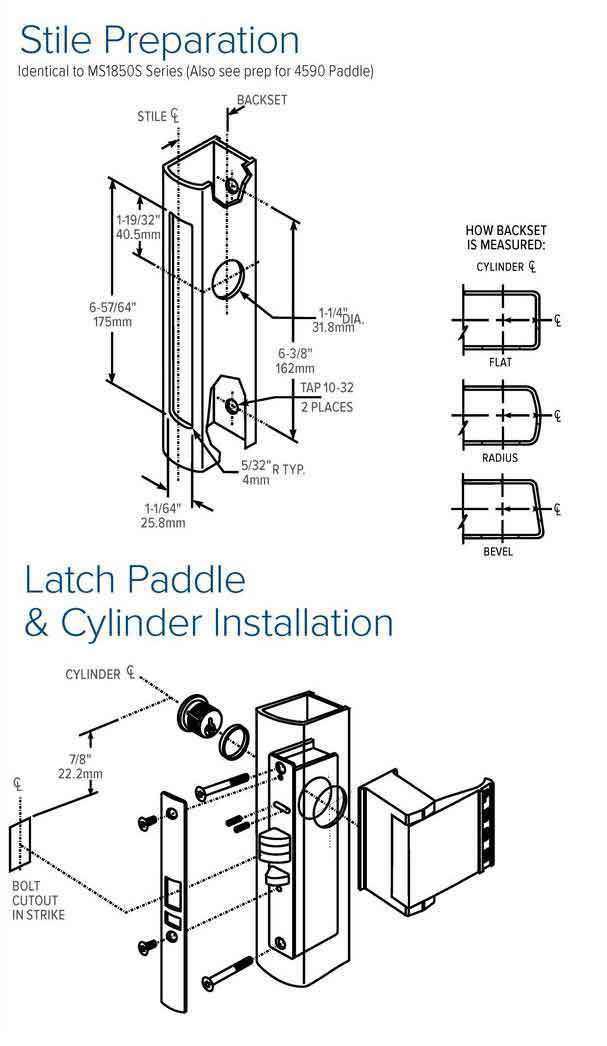

Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MSĀ® cam. Cylinder Sold Separately
Original: $53.86
-65%$53.86
$18.85Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape.
More Details Below
Features
| Backset | 7/8" |
| Case | Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x 147.6 mm x depth]. Depth varies by backset |
| Bolt Holdback | While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging. |
| Latchbolt | All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2" [12.7 mm x 25.4 mm x 12.7 mm] throw. |
| Auxiliary Bolt | All metal. Deadlocks latchbolt to prevent āloidingā or case-knife entry |
| Faceplate | Flat - Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. |
| Handing | Left handed or Right Hand reverse |
| Door Types | Aluminum , Swinging Door |
| Strike | Standard strike furnished is Mortised (4902) 2-5/8" - Flat/Standard Jamb |
| Finish | 313 - Dark Bronze Anodized |
| Standard Package | Individually boxed with faceplate and mounting screws. |
Installation Instructions Download Here
Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MSĀ® cam. Cylinder Sold Separately
