Abrites - CB403 - DS-BOX Extended Cable Set for direct connection with various Automotive / Truck modules on Bench work

The ABRITES CB403 Cable Set is developed for professionals to connect and work on various modules, such as ECUs, TCUs, and other automotive components, directly on the bench. It facilitates advanced diagnostics, programming, and module servicing tasks, making it an essential tool for automotive repair and module personalization.

This cable set works seamlessly with the ZN151 Distribution Box Set and provides multiple connectors for direct interfacing with modules in a broad range of vehicles, including trucks, buses, heavy-duty machinery, and passenger vehicles. Its features support operations such as reading, writing, virginize, personalizing, and updating modules with enhanced speed and simplicity.

Functionalities:

• Wide Application: Enables direct connection to automotive modules in diverse vehicles.
• Advanced Module Servicing: Supports operations like reprogramming, resetting, and updating automotive components.
• Faster Workflow: Designed for improved efficiency as part of the upgraded ZN151 Distribution Box Set.



Compatibility:

• Requirements: The CB403 is not a standalone product and requires the ZN151 Distribution Box Set and AVDI (Abrites Vehicle Diagnostics Interface).
• Comparison: If you own the ZN051 Distribution Box, it includes the CB401 cable, which offers similar functionality. However, the CB403 provides a more streamlined and faster approach to module servicing.



Component	Details	Quantity

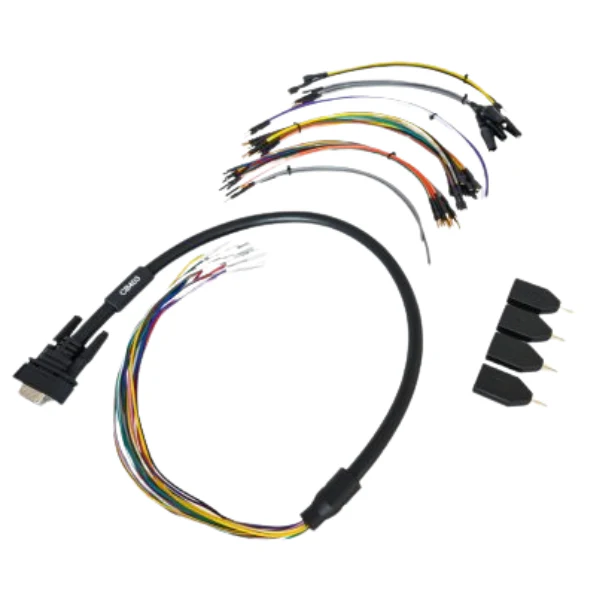

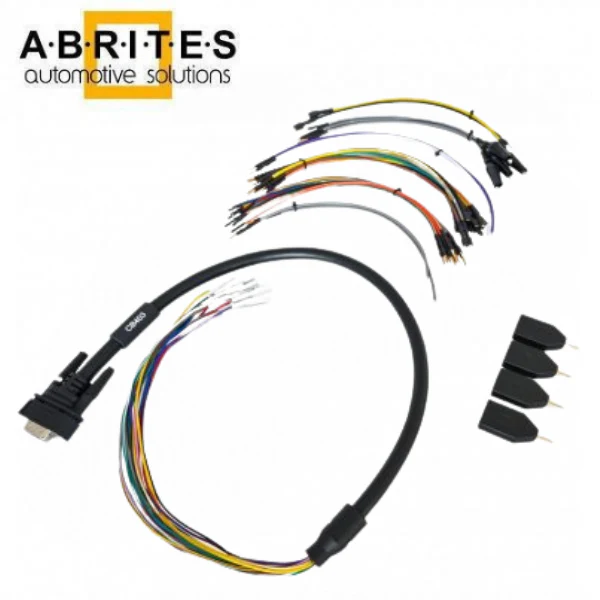

Main Cable	70 cm long with HD15 connector (all pins wired) on one side and round hole terminals on the other. Pinout: 1 - Pink: "IGN" 2 - Yellow/Yellow-white: "B+" 3 - Red/Blue: "K-LINE 1" 4 - Purple: "BOOT 2" 5 - White: "BOOT 1" 6 - Green: "T2" 7 - Brown: "T1" 8 - Red: "CAN H" 9 - Green/White: "T3" 10 - Green/Brown: "T4" 11 - Black: "GND" 12 - Gray: "GND" 13 - Yellow/Brown: "B+ PERMANENT" 14 - Blue: "CAN L" 15 - Gray/Pink: "K-LINE 7"	1 piece
Splitter Adapter	1 male to 3 female with round terminals.	4 pcs
Gray Wire	Crocodile Tip Small Terminal Tip Middle Terminal Tip NO Terminal	4 pcs / 2 pcs / 2 pcs / 2 pcs
Red Wire	Small Terminal Tip Middle Terminal Tip	1 pc each
Blue Wire	Small Terminal Tip Middle Terminal Tip	1 pc each
Brown Wire	Small Terminal Tip Middle Terminal Tip	1 pc each
Green Wire	Small Terminal Tip Middle Terminal Tip	1 pc each
Orange Wire	Small Terminal Tip Middle Terminal Tip	2 pcs / 1 pc
Black Wire	Small Terminal Tip Middle Terminal Tip Large Terminal Tip	1 pc / 2 pcs / 1 pc
Yellow Wire	Small Terminal Tip Middle Terminal Tip Large Terminal Tip	1 pc / 2 pcs / 1 pc
Gray Wire (30 cm)	NO Terminal	1 pc
Purple Wire (30 cm)	NO Terminal	1 pc
