ABH - PTC5E Power Transfer - Optional Finish

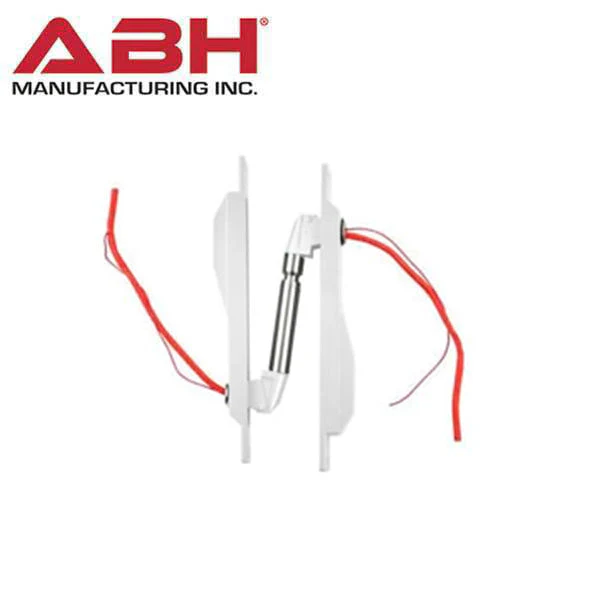

ABH-PTC5E

Power Transfer Cat.5 Ethernet Cable

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

PTC5E

CAT-5E Standard Ethernet Cable (Max. 350MHz)

(1) 22 AWG Wire; Max Rating: 24VDC, 1 A

• Features:
  • PT200 & PT1000 & PT1000EZ & PTC5E provide the means of transferring electrical power & data from the frame to the door in a secure and discreet manner.
  • PTC5E and PTCPLUS are supplied with ethernet cable
  • Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
  • All metal construction including backboxes - NO PLASTIC PARTS
  • Ideal for high abuse or heavy traffic situations
  • UL/ULC Listed for use on fire doors
  • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
  • Approximate shipping weight: 3 lbs.
  • Patent Pending
  • Matches competitor's door and frame prep

• Standard Applications:
  • 1-3/4" Door thickness
  • Cam lift hinges (up to 1/2" lift) - allowing for 180° door swing
  • Butt hinges up to 5" - allowing for 180° door swing
  • 5-1/2" butt hinges - allowing for 130° door swing
  • 6" butt hinges - allowing for 110° doo swing
  • Up to 3/4" offset pivots allowing for 180° door swing
  • Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors
  • Average weight per unit = 1.5 lbs
