ABH - PT200EZ Power Transfer - Optional Finish

ABH-PT200EZ

Electrical Power Transfers

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

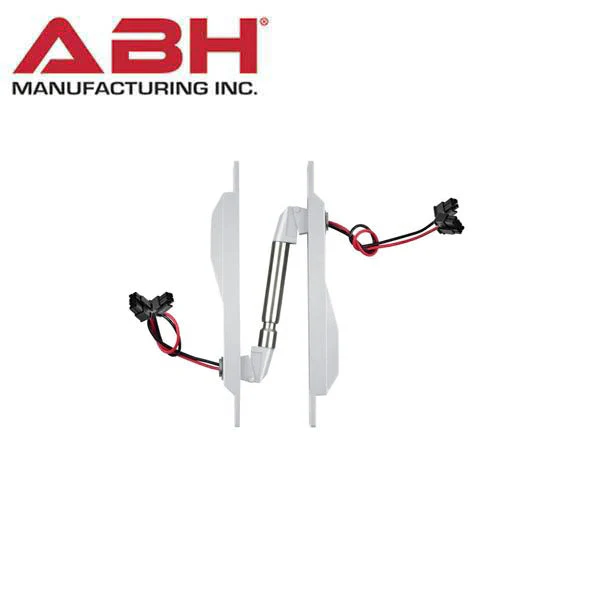

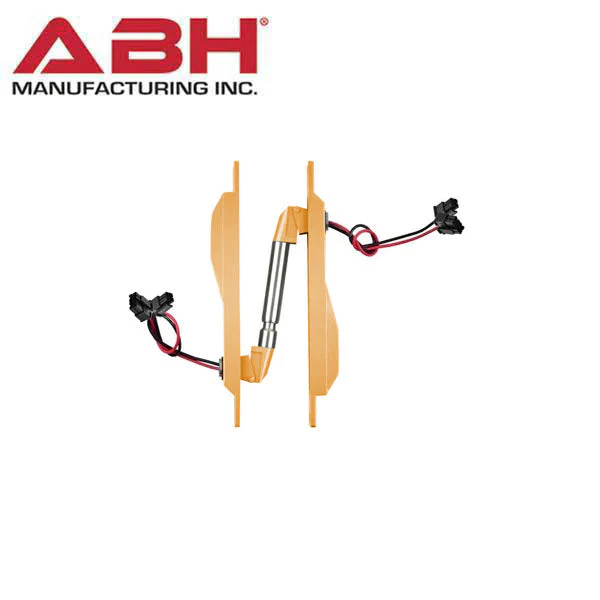

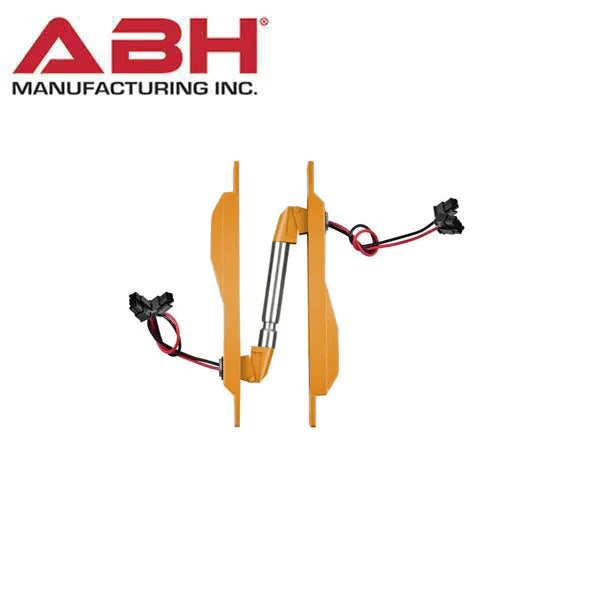

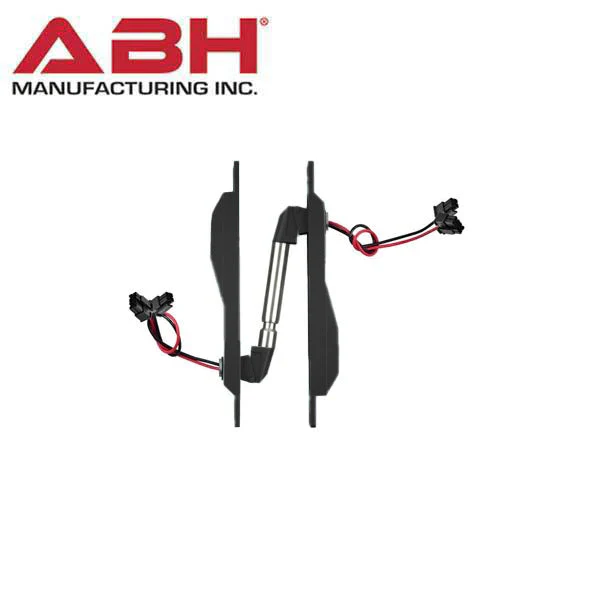

PT200EZ (Molex Connectors)

(2) 18 AWG Wires

Max. Rating: 24 VDC, 1A

• Features:
  • Power Transfer (2) 18 AWG Wires with EZ Connectors Molex® Micro-Fit 3.0.
  • Unit mortises into the edges of the door and frame and is completely concealed when the door is in the closed position.
  • All metal construction including backboxes - NO PLASTIC PARTS
  • Ideal for high abuse or heavy traffic situations
  • UL/ULC Listed for use on fire doors
  • Packaged individually with fasteners for wood, steel, or aluminum doors and frames
  • Approximate shipping weight: 3 lbs.
  • Patent Pending
  • Matches competitor's door and frame prep

• Standard Applications:
  • 1-3/4" Door thickness
  • Cam lift hinges (up to 1/2" lift) - allowing for 180° door swing
  • Butt hinges up to 5" - allowing for 180° door swing
  • 5-1/2" butt hinges - allowing for 130° door swing
  • 6" butt hinges - allowing for 110° doo swing
  • Up to 3/4" offset pivots allowing for 180° door swing
  • Not for use with swing clear hinges, pocket pivots, butt hinges larger than 6", 1-1/2" offset pivots or center hung doors
  • Average weight per unit = 2 lbs
