ABH - 6400 Series Privacy Hospital Latch Pull Side Thumbturn - Optional Finish

ABH-6400

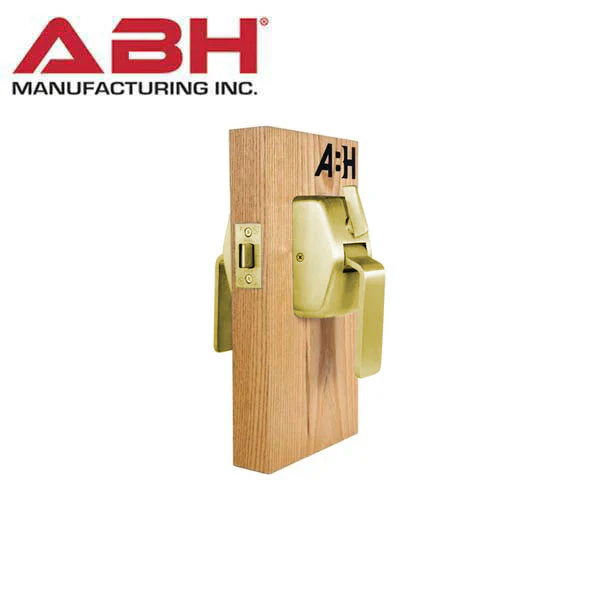

Cylindrical Privacy - Pull Side Lock

Architectural Builders Hardware Mfg. Inc. (ABH) is a high quality manufacturer of Overhead Holders & Stops, Hospital Latches, Electromagnetic Holders, Pivots, Strikes and Rescue Stops, Aluminum Hinges, Stainless Steel Hinges, Coordinators, Flush Bolts, Power Wire Transfers, and Roller Latches.

Features:

• Designed for patient bathroom applications with the privacy-actuated thumb turn on one side and the override know on the opposite side in case of emergency
  • 6400 Series - Locking thumb turn on pull side override knob on push side
  • 6500 Series - Locking thumb turn on push side override knob on pull side
• Cylindrical latch application - privacy function
• Door is locked by moving the thumb turn into the locked position
• Door is unlocked by operating handle on thumb turn side, moving thumb turn into the unlocked position or rotating the overrie knob in case of emergency
• 1-3/4" standard door thickness (specify if different)
• Meets ADA requirements
• Trim is mounted using four thru-bolts for maximum stability
• One continuous spring provides a smoother operation and an extended life for the unit
• Non-handed for installation and stocking ease
• UL Listed in U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
• 1/2" Latch Bolt Throw
• Average weight per unit = 5 lbs
• Patent# 6,293,598 & #6,196,599
