AABLE - Ford Ignition Disk Out Kit - 5 Pin
AAB-10WDB-01
There is nothing on the market that works as well or as fast as the "Disc-Out" kit. The "Disc-Out" kit speeds and simplifies ignition cylinder removal. These cylinders are retained by two means: the tail shaft and a push-in locking pin. Both retainers require the ignition to be in the "ON-RUN" position for removal. The shear line is protected by a hard steel disc. With the "Disc-Out" kit, you can cleanly remove this hard disc in less than one minute. Included special shims allow you to shim-pick the ignition from the front, to rotate the ignition to the "ON" position. The complete job will take no more than 5 minutes.
Features:
- Remove the protective "Hard Disc"
- Shim-pick ignition to the "ON" position for removal
- Drill the shear line of non-working ignitions, for removal.

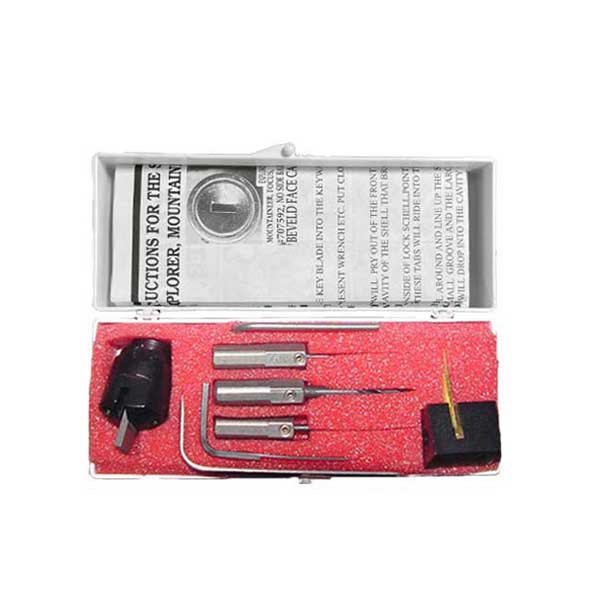

Includes:
- Hardened Drill Guide
- Special Arbor & Cutter
- Special Cylinder Shims
Compatible with the following:
1979-Present Ford 5 Pin Ignitions
