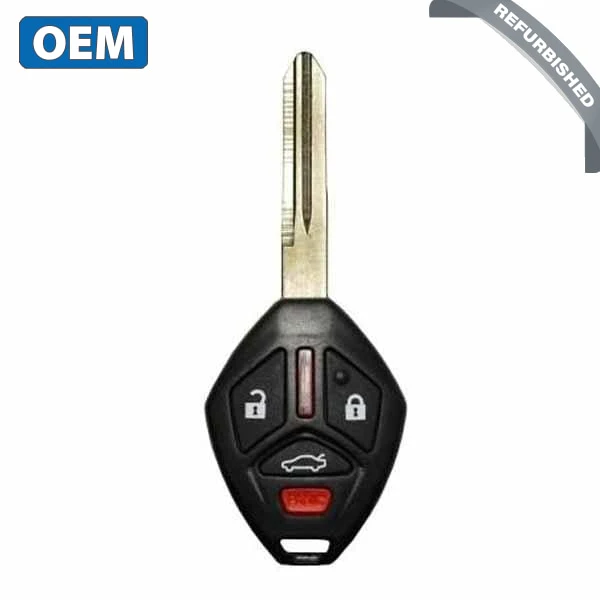

2006-2007 Mitsubishi Eclipse Galant / 4-Button Remote Head Key / MIT6 / PN: G8D-620M-A / OUCG8D-620M-A (OEM Refurb)

• Original OEM
• Condition: Original OEM board with an aftermarket shell.
• FCC ID: OUCG8D-620M-A
• IC: 850G-G8D620MA
• Chip: Philips ID 46 MITS
• Keyway: MIT6 MIT-18
• Frequency: 314 Mhz
• Reusable: Yes after Unlocking
• Battery: CR1620
• PN: G8D-620M-A
• Buttons: Unlock, Lock, Panic, Trunk



Compatible with the following 2006 - 2007 Mitsubishi Eclipse 2006 - 2007 Mitsubishi Galant 2007 (MIT6 keyway) Mitsubishi Eclipse - Check Keyway on 2007 Models 2007 (MIT6 keyway) Mitsubishi Galant Onboard Programming for the remote portion:

• Requires TWO working PATS keys
• Insert Key Into Ignition, do not turn on.
• Short Pins 1 and 4 in the OBD2 Port.
• Within 10 Seconds of shorting the pins push the Hazzard Switch six times. The door locks will cycle.
• Push the lock button on the first remote three times within 10 seconds. The door locks will cycle if the remote was recognized.
• Follow this same step for any additional remotes.
• Remove the short on Pins 1 and 4 on the OBD2 Connector.
• Remove the Key from the Ignition.
• Test all remotes.
