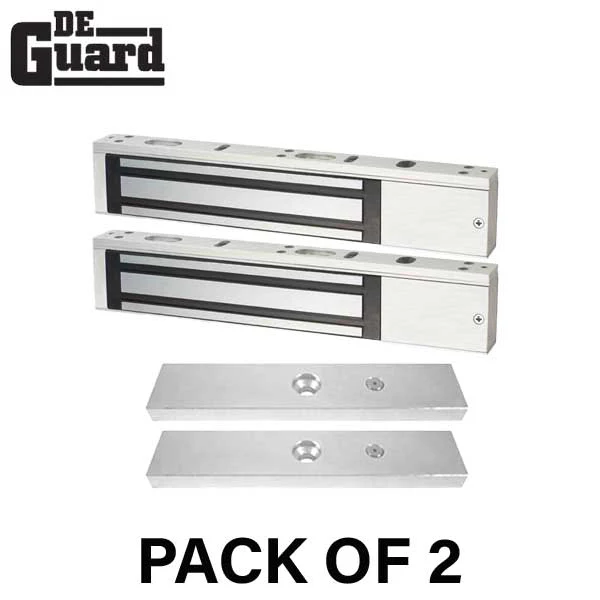

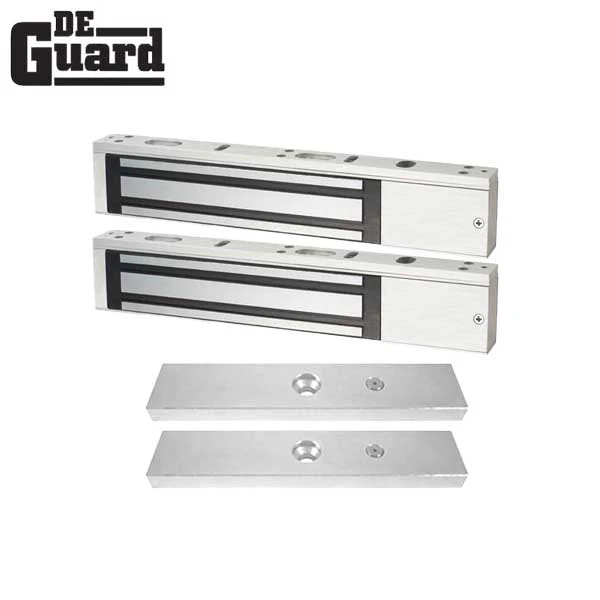

2 x Single Door Maglocks - 600 lb Holding Force - Bond Sensor - Grade 1 (Bundle of 2)

2xDMGL-600

This is a Bundle of 2 Surface Mounted Single Door 600 Lb Electromagnetic Locks used to secure the door in conjunction with push bars, request-to-exit devices, or credential readers. The locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door.

More Information Below

Applications	Can be used with any access control system
Doors	Single Door
Holding Force	600-lb (272kg)
Operating Voltage	12 or 24 VDC±10% Selectable
Current Draw	500 mA at 12 VDC, 250 mA at 24 VDC
Operating Temperature	14º ~ 131º F (-10º ~ 55º C)
Electromagnet Dimensions	9-7/8" L x 1-11/16" H x 1" W
Armature Dimensions	7-1/4" L x 1-7/16" H x 5/8" W
Safety	Internal Voltage Spike Suppressor
Mounting	Adjustable mounting plate for easy proper installation
Finish	US32D/630 - Satin Stainless Steel
Certifications	Grade 1
Bond Sensor	Yes bi-color LED signals when lock is magnetically secured
